Compare Variable Refrigerant Flow Plans: A Comprehensive Engineering Guide

The evolution of climate control in large-scale architecture has moved decisively away from the brute-force methodology of centralized chilled water plants and constant-volume air handling. Compare Variable Refrigerant Flow Plans. As building codes tighten and the demand for localized thermal autonomy grows, Variable Refrigerant Flow (VRF) technology has emerged as the primary contender for high-efficiency HVAC deployment. Unlike traditional systems that circulate air or water, VRF cycles refrigerant directly to multiple indoor units, allowing for simultaneous heating and cooling across different zones within a single structure.

However, the transition to VRF is not merely a hardware swap; it is a fundamental shift in mechanical philosophy. To effectively compare variable refrigerant flow plans, one must move beyond basic SEER ratings and look at the “part-load” efficiency and the complexity of the refrigerant piping network. In a modern commercial or luxury residential context, the “plan” is the strategic blueprint that dictates how heat is moved, reclaimed, and rejected across the building’s thermal gradient. A poorly conceived plan can lead to refrigerant leaks, oil return failures, and astronomical maintenance costs, while a well-engineered one provides a level of quiet, granular comfort that was previously unattainable.

The complexity of these systems necessitates a move toward integrated design. Engineers can no longer work in a silo; the VRF plan must be synchronized with the building’s envelope, its occupancy sensors, and its long-term carbon reduction targets. This article serves as a technical reference for those tasked with navigating the nuances of VRF implementation, providing a rigorous framework to evaluate the trade-offs between heat pump and heat recovery systems, modular versus centralized configurations, and the evolving landscape of low-GWP (Global Warming Potential) refrigerants.

Understanding “compare variable refrigerant flow plans”

The process to compare variable refrigerant flow plans involves a multi-dimensional assessment of a building’s thermodynamic needs. At its core, a VRF plan is a map of how refrigerant—the lifeblood of the system—is distributed through a structure. One must account for vertical distance, horizontal branch lengths, and the total “connected capacity” of indoor units relative to the outdoor condenser. A common mistake is assuming that a “two-pipe” system from one manufacturer is functionally identical to a “three-pipe” system from another; the engineering logic governing heat recovery differs significantly between them.

In a multi-perspective view, the architect sees VRF as a way to reclaim ceiling height (due to smaller piping vs. large ducts), while the facility manager sees it as a network of hundreds of individual electronic expansion valves (EEVs) that require specialized maintenance. The risk of oversimplification lies in treating VRF as “plug-and-play.” In reality, the “plan” must account for the “Oil Return Cycle”—a mechanical necessity where the system temporarily reverses or accelerates flow to ensure compressor lubricant doesn’t settle in the far reaches of the piping.

Furthermore, a comprehensive plan must evaluate the “Simultaneous Load” factor. If a building requires heating on the north side and cooling on the south side, a Heat Recovery plan will move that heat internally, drastically reducing energy draw. If the plan only utilizes a standard Heat Pump configuration, the system must choose one mode for all zones, forcing the building to fight its own microclimate. Therefore, comparing plans requires a deep dive into the building’s specific occupancy patterns and solar orientation.

The Historical Shift: From VAV to Variable Refrigerant

For the better part of the 20th century, the Variable Air Volume (VAV) system was the gold standard for American commercial buildings. It relied on a massive central air handler and a labyrinth of galvanized ductwork. While robust, VAV systems are inherently “leaky” from an energy perspective; moving air through a building requires significant fan power and involves high thermal losses.

VRF technology, pioneered in Japan in the early 1980s, offered a radical alternative. By using inverter-driven compressors, the system could vary the speed of the motor to match the exact load required by a single room. It wasn’t until the early 2000s that VRF gained a significant foothold in the United States, initially favored for historic retrofits where space for ductwork was non-existent. Today, it is the default choice for schools, hotels, and high-performance offices. The historical trajectory has moved from “centralized power” to “distributed intelligence.”

Conceptual Frameworks and Mechanical Mental Models

The Inverter Mental Model

Think of a traditional HVAC system like a light switch (either ON at 100% or OFF at 0%). Think of VRF like a dimmer switch. The inverter allows the compressor to run at precisely the speed needed (e.g., 17% or 62%). This prevents the “cycle loss” that occurs when a motor constantly starts and stops.

The Heat Recovery “Internal Exchange” Model

In a heat recovery plan, the building acts as its own thermal ecosystem. Instead of rejecting heat to the outside air via the condenser, the system “captures” heat from a server room that needs cooling and “pipes” it to a corner office that needs heating.

• Limit: This only provides high efficiency when there is a balanced load of heating and cooling needs simultaneously.

The Connected Capacity Ratio

This is the framework of “over-piping.” Engineers often specify 130% connected capacity, meaning the total cooling power of the indoor units exceeds the power of the outdoor unit.

• Logic: It is rare that every room in a building will require 100% cooling at the exact same moment. This allows for a smaller, more efficient outdoor footprint.

System Variations: Heat Pump vs. Heat Recovery

When you compare variable refrigerant flow plans, the most critical decision is between a 2-pipe Heat Pump and a 2-pipe/3-pipe Heat Recovery system.

Feature	Heat Pump (2-Pipe)	Heat Recovery (2/3-Pipe)
Operational Mode	Entire system is in Heat OR Cool	Simultaneous Heat and Cool
Energy Strategy	Load-matching only	Thermal energy recycling
Piping Complexity	Low	High (Requires Branch Controllers)
Best Application	Open-plan offices, Retail	Hotels, Hospitals, Multi-family
Upfront Cost	Baseline	15–25% Premium

Real-World Scenarios and Deployment Constraints Compare Variable Refrigerant Flow Plans

Scenario 1: The Historic Hotel Retrofit (Boston, MA)

• Constraint: No room for ductwork; varying guest preferences across 200 rooms.

• Plan Choice: Heat Recovery VRF with sleek, concealed floor units.

• Outcome: Guests in sun-drenched rooms can cool while those in shaded rooms heat, with zero noise transfer between units.

Scenario 2: The Modern High-School (Phoenix, AZ)

• Constraint: Massive cooling loads in gymnasiums but intermittent heating needs in early morning labs.

• Plan Choice: Modular Heat Pump VRF with high-ambient cooling capacity.

• Second-Order Effect: Because the system is modular, if one outdoor compressor fails, the rest of the school stays cool while a replacement part is sourced.

Planning, Cost, and Resource Dynamics

The financial analysis of a VRF plan must account for the “Soft Costs” of engineering and the “Hard Costs” of specialized labor.

Category	Estimated Cost Impact	Strategic Reasoning
Design/Engineering	10% Premium	Requires specialized refrigerant flow modeling.
Refrigerant Piping	30% of System	Copper prices and brazing labor are significant.
Controls/Sensors	15% of System	Essential for the “Distributed Intelligence” layer.
Maintenance Reserve	5% Annual	Required for leak detection and EEV calibration.

The Opportunity Cost of Centralization

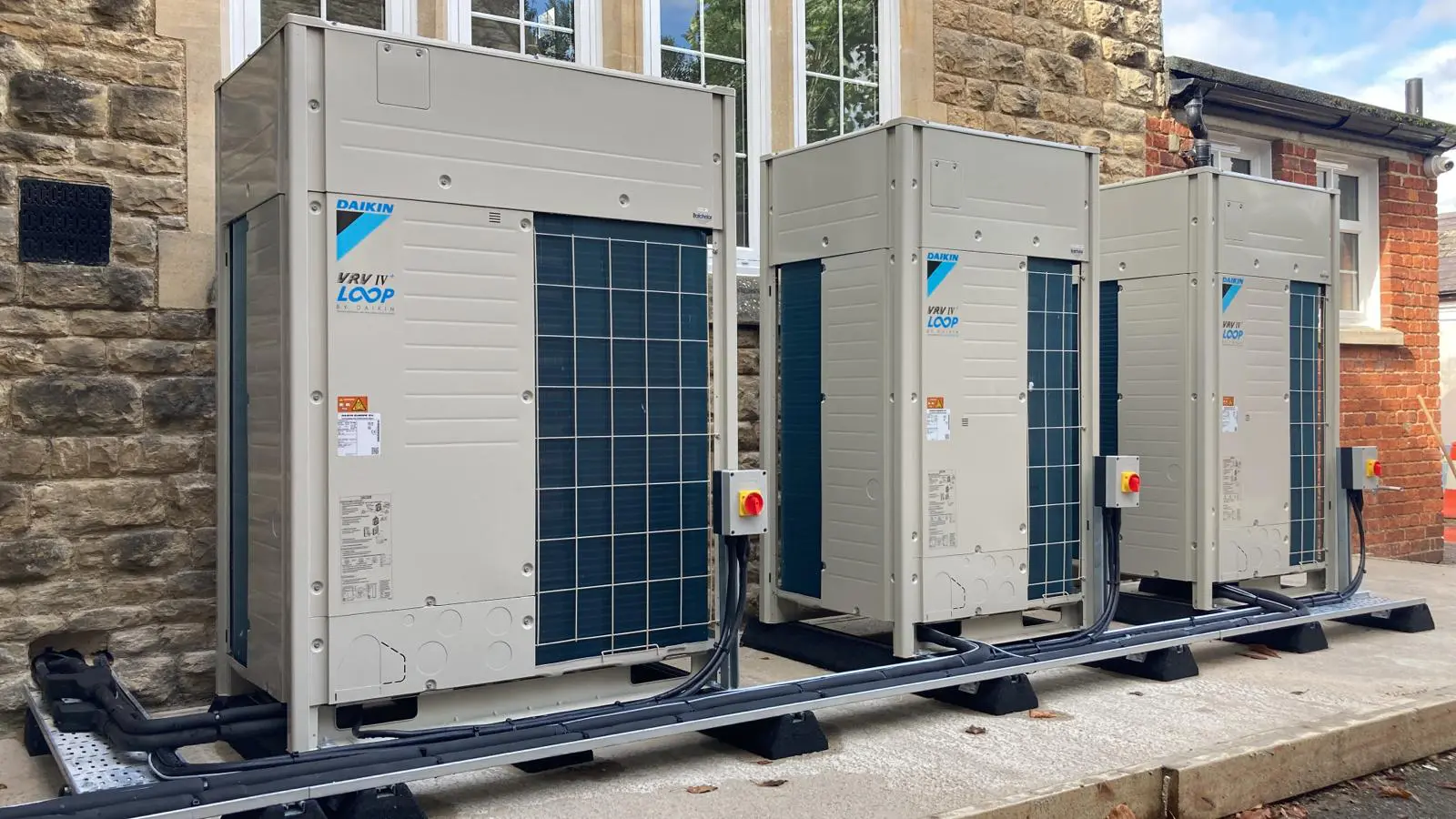

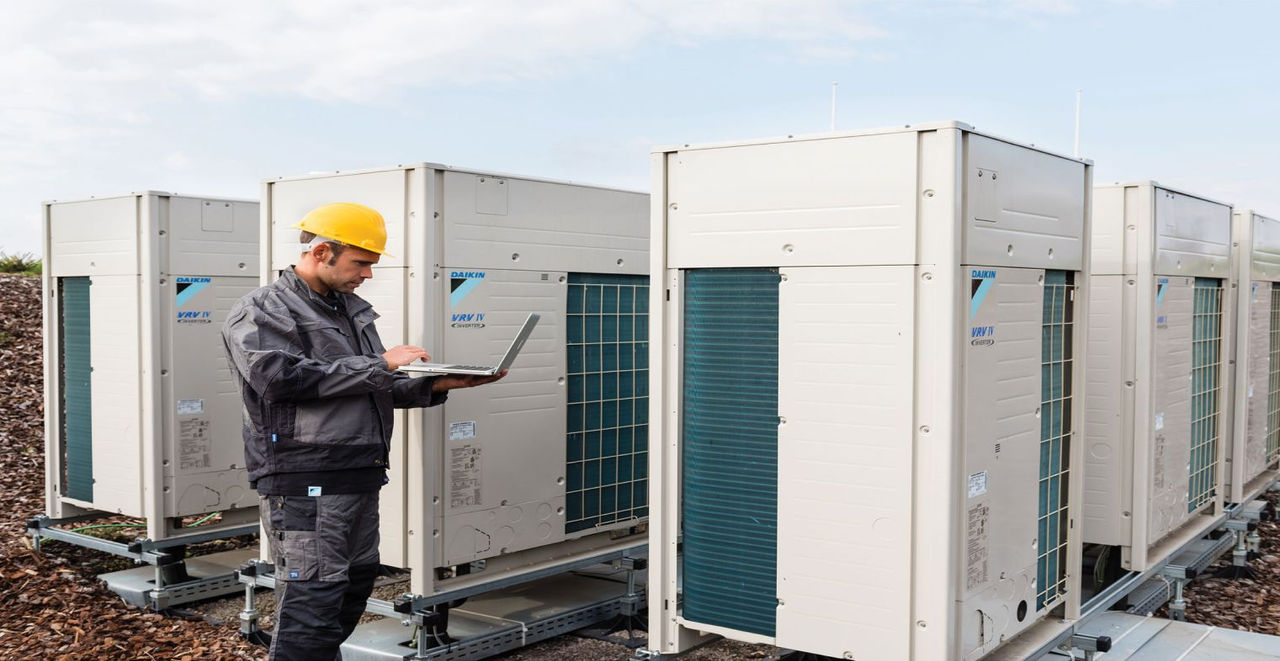

Choosing a traditional chiller/boiler plant over a VRF plan often results in a “Mechanical Room Tax”—the loss of hundreds of square feet of leasable space to house massive equipment. VRF condensers can often be placed on rooftops or in small alleys, reclaiming high-value floor area.

Technical Support Systems and Integration Tools

1. Branch Provider (BP) Boxes: The “brain” of a heat recovery plan that sorts refrigerant into gas or liquid phases based on zone demand.

2. Inverter-Driven Scroll Compressors: The mechanical heart that allows for variable speed operation.

3. Electronic Expansion Valves (EEVs): Micro-stepper motors that control refrigerant flow to the milligram.

4. Leak Detection Systems: Mandatory in many jurisdictions (ASHRAE 15/34) to ensure guest safety in the event of a refrigerant pipe rupture.

5. Centralized Network Controllers: Web-based interfaces that allow a facility manager to see every EEV position in the building from a smartphone.

6. Low-GWP Refrigerants (R-32 / R-454B): The 2026 standard for reducing the environmental impact of the refrigerant charge itself.

Risk Landscape: Compounding Failures and Mitigation

VRF systems are “High-Strung” engineering marvels. They do not tolerate sloppy installation.

• The Moisture Trap: If a technician does not use nitrogen while brazing copper pipes, “soot” forms inside. This soot eventually clogs the microscopic EEVs, leading to a system-wide heart attack 24 months later.

• Refrigerant Concentration Limits (RCL): If a large system leaks into a small, unventilated room, it can displace oxygen. A safe plan must include permanent leak sensors and automated shut-off valves.

• Oil Log: In systems with long vertical rises, oil can get trapped. The plan must include “Oil Traps” and programmed “Oil Recovery Cycles” to protect the compressor.

Governance, Maintenance, and Long-Term Adaptation

A VRF system is a 15–20 year asset that requires a “Governance Protocol” rather than just a repair schedule.

• Annual Refrigerant Audit: Checking the “sub-cooling” and “super-heat” values to ensure the charge hasn’t leaked.

• Filter Management: Because VRF units have smaller blowers, a dirty filter can reduce efficiency by 40% almost instantly.

• Adaptation Trigger: As rooms are renovated or walls are moved, the “connected capacity” must be recalculated to ensure the outdoor unit isn’t being “starved” of refrigerant.

Measurement and Performance Verification

• Leading Indicator: Part-load IEER (Integrated Energy Efficiency Ratio). This measures how well the system performs when only 25% of the building is in use.

• Lagging Indicator: Monthly electrical bills compared against a VAV-baseline model.

• Documentation: The “Brazing Log” and “Vacuum Decay Test” records are the most important documents an owner can hold to verify the quality of the initial install.

Common Misconceptions and Technical Myths

1. Myth: VRF is only for small buildings.

   • Reality: VRF modules can be “twinned” to create systems exceeding 100 tons, capable of cooling major skyscrapers.

2. Myth: You can’t use VRF in very cold climates.

   • Reality: Modern “Hyper-Heat” technology allows VRF to provide 100% heating capacity down to -13°F.

3. Myth: Refrigerant is bad for the environment.

   • Reality: While older refrigerants were high-GWP, the 2026 shift to R-32 and R-454B significantly reduces the environmental footprint.

4. Myth: VRF is maintenance-free.

   • Reality: It requires less frequent but more specialized maintenance than a chiller.

Conclusion: The Synthesis of Efficiency and Autonomy

To effectively compare variable refrigerant flow plans is to engage in a sophisticated balancing act between thermal precision and structural reality. The era of the “one-size-fits-all” HVAC system is over. In its place is a modular, intelligent, and highly adaptable technology that mirrors the complexity of modern architecture. A successful VRF plan is one where the hardware disappears, leaving only a silent, perfect environment for the occupants. Achieving this requires more than just high-end components; it requires an editorial-level attention to detail in the design phase, ensuring that every pipe, valve, and sensor is part of a coherent, long-term strategy for building performance.
