How to Manage Thermal Bridging: A Strategic Guide to Envelope Integrity

In the hierarchy of building failures, few phenomena are as insidious as the thermal bridge. It is a localized area in the building envelope where the thermal resistance is significantly lower than the surrounding assembly, creating a bypass for heat. How to Manage Thermal Bridging. While a casual observer might view a building as a collection of walls and windows, the building scientist sees a complex network of heat-flow paths where every stud, balcony slab, and lintel acts as a potential conduit. As energy codes tighten and the push for “Passive House” standards becomes mainstream, the margin for error in envelope design has vanished.

Managing these bridges is not merely an exercise in energy conservation; it is a fundamental requirement for structural durability and occupant health. When heat bypasses the insulation layer, it creates cold spots on interior surfaces. In humid environments, these cold spots reach the dew point, leading to interstitial condensation—the primary precursor to mold growth and the premature rot of structural members. Therefore, understanding the mechanics of heat transfer at the junctions of a building is no longer a niche specialty but a core competency for modern architectural and engineering practices.

The challenge lies in the fact that thermal bridges are often “built-in” by traditional construction methods. Steel and concrete, the darlings of the industrial era, are exceptionally high in thermal conductivity. A continuous concrete balcony slab, for instance, acts as a radiator, pumping interior heat out into the atmosphere during winter months. To address this, we must rethink the physical connections of our structures, moving away from monolithic assemblies toward thermally broken systems that prioritize the continuity of the insulation layer above all else.

Understanding “how to manage thermal bridging”

To successfully navigate how to manage thermal bridging, one must transcend the simplistic notion that more insulation solves all problems. In fact, increasing the thickness of wall insulation often exacerbates the relative impact of thermal bridges at junctions. The “bridge” is a geometric and material problem, not just a quantity-of-material problem. It requires a multi-perspective analysis: the structural engineer must ensure stability, the architect must maintain aesthetic intent, and the building scientist must ensure the thermal break remains uncompromised.

Common misunderstandings often stem from the invisibility of heat flow. A steel bolt penetrating an insulated wall might seem insignificant, but its conductivity is so high compared to the surrounding mineral wool or foam that it can transport as much heat as several square feet of the wall itself. This is known as the “point thermal bridge.” Oversimplification occurs when teams rely on one-dimensional R-value calculations. To truly manage these paths, three-dimensional heat-flow modeling (using finite element analysis) is often necessary to identify where the “effective R-value” of a wall assembly drops below acceptable levels.

The risk of neglect is highest at the transitions: where the wall meets the roof, where the window meets the rough opening, and where the floor slab meets the exterior. If the insulation layer is “zipped” together at these points without a thermal break, the building is essentially a thermal sieve. High-performance management involves the “red pen test”—taking a section drawing and ensuring one can trace a continuous line of insulation around the entire building without lifting the pen.

Deep Contextual Background: The Evolution of Thermal Control

Historically, thermal bridging was less of a concern because buildings were “leaky” and thermally inefficient by design. In the era of heavy masonry construction, walls were thick enough to provide a thermal buffer, and the high rate of air infiltration meant that interior surfaces were often dried out by moving air. The structure was the thermal mass.

The shift toward light-frame construction and the introduction of high-performance insulation in the 1970s changed the physics of the wall. As we made the “field” of the wall more efficient, the “un-insulated” parts—the studs, the headers, and the plates—began to stand out. We moved from a systemic inefficiency to a localized one. In the 21st century, as we transition toward mass timber and advanced composites, we are finally developing the materials that allow for structural integrity without the thermal penalty of steel or concrete.

Conceptual Frameworks and Mental Models

• The Pen Test (Continuity Model): This is the fundamental mental model for envelope integrity. If the insulation layer is interrupted by a highly conductive material, the “thermal envelope” does not exist; only a collection of insulated panels exists.

• The Geometric Bridge vs. Material Bridge: Understanding that some bridges are caused by shape (corners where more exterior surface area loses heat than interior surface area can provide) while others are caused by material (a steel beam).

• The Effective R-Value Matrix: This framework acknowledges that the “nominal” R-value of insulation is irrelevant if the “effective” R-value is dragged down by 40% due to unmanaged bridging.

• The Dew Point Gradient: A framework that focuses on the temperature profile through an assembly. Managing a bridge is successful only if the temperature of the interior surface remains above the dew point under all design conditions.

Key Categories of Thermal Bridging Variations

Category	Primary Cause	Typical Impact	Management Logic
Linear Bridge	Floor slabs, lintels, roof-to-wall junctions	Significant heat loss over distance	Structural thermal breaks (thermal shims)
Point Bridge	Bolts, ties, structural columns	Localized condensation/mold	Non-conductive fasteners (GFRP)

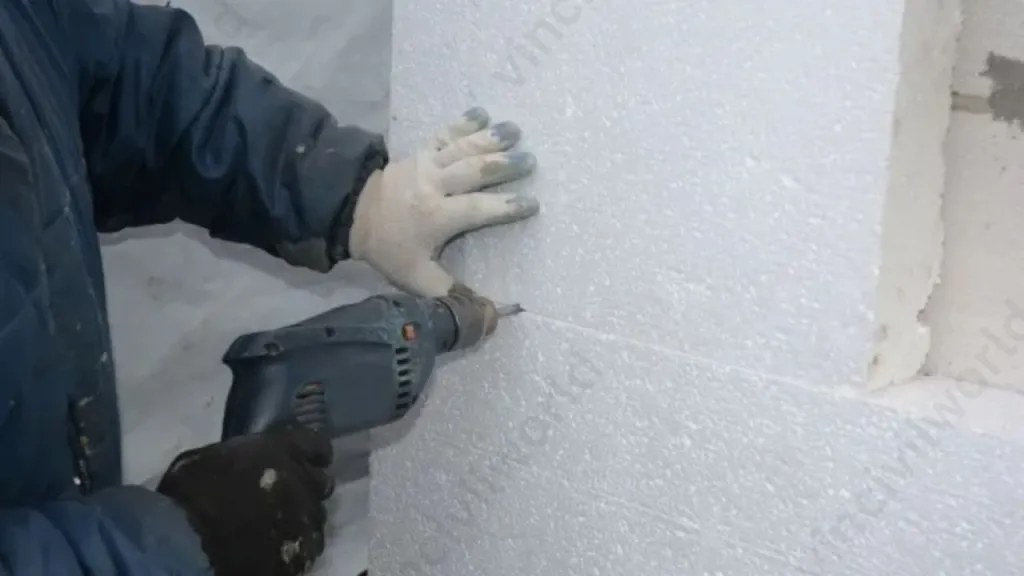

Repeated Bridge	Wall studs, rafters, floor joists	Reduction in overall wall R-value	External continuous insulation (CI)
Geometric Bridge	Building corners, parapets, balconies	Accelerated local heat loss	Interior chamfering or exterior wrapping

Realistic Decision Logic

The choice of intervention is usually dictated by the structural load. For a non-load-bearing balcony, a simple thermal break at the wall interface is sufficient. For a load-bearing steel column, the logic shifts toward “wrapping” the column in insulation for several feet inside the building to create a “thermal buffer” that slows the rate of heat transfer.

Detailed Real-World Scenarios How to Manage Thermal Bridging

Scenario 1: The Modern Cantilevered Balcony

In a high-rise luxury development, the architect insists on continuous concrete slabs for aesthetic flow.

• Challenge: The slab acts as a giant cooling fin.

• Management: Use of structural thermal break modules consisting of stainless steel rebar and a foam core.

• Second-Order Effect: By keeping the slab warm, the developer avoids the “cold floor” complaints that typically plague high-end units in winter.

Scenario 2: The Steel-Framed Commercial Warehouse

A massive footprint where steel Z-girts are used to hold exterior metal panels.

• Failure Mode: The girts create a direct path from the cold exterior panel to the warm interior steel frame.

• Management: Replacing steel girts with Fiberglass Reinforced Polymer (GFRP) clips or using thick thermal shims between the girt and the stud.

Planning, Cost, and Resource Dynamics

The primary resource in managing thermal bridges is not material, but design time. Addressing these issues during the “Schematic Design” phase costs virtually nothing compared to the “Value Engineering” phase where solutions are often discarded due to high perceived costs.

Component	Cost Impact	ROI Metric	Complexity
Continuous Insulation (CI)	Moderate	Energy savings + Longevity	Low (Standard practice)
Structural Thermal Breaks	High (Direct)	Prevention of repair/litigation	High (Engineering heavy)
GFRP Fasteners	Low-Moderate	Effective R-value boost	Low (Drop-in replacement)
Thermal Modeling (3D)	Moderate	Design optimization	Medium (Specialized labor)

Tools, Strategies, and Support Systems

1. Finite Element Analysis (FEA) Software: Tools like THERM or HEAT3 that allow designers to see exactly where the heat is leaking.

2. Structural Thermal Breaks (STBs): Specialized components designed to carry load while providing an insulating gap.

3. Low-Conductivity Shims: High-density polyethylene or aerogel-based strips used to decouple steel-to-steel connections.

4. Helical Facade Ties: Stainless steel ties that have lower conductivity than traditional galvanized steel ties.

5. Aero-clays and Graphite-Infused Insulation: Materials designed to provide higher R-values in the thin profiles often required at junctions.

6. Infrared Thermography: A post-construction tool to verify that the thermal breaks were installed correctly and are functioning.

Risk Landscape and Failure Modes

The “Compounding Risk” of thermal bridging is most evident in the “Cold Corner” syndrome. In a corner, the interior air is often stagnant. If that corner is also a geometric thermal bridge, the surface temperature drops significantly.

• Taxonomy of Failure: Surface Condensation -> Spore Activation -> Mold Growth -> Air Quality Degradation.

• Structural Failure: In steel buildings, constant condensation at a bridge can lead to “hidden corrosion” where the fasteners holding the facade eventually fail without warning.

• The Comfort Gap: Even if mold doesn’t form, the “Mean Radiant Temperature” of the room is lowered, causing occupants to turn up the thermostat, which increases the temperature differential and accelerates the heat loss through the bridge.

Governance, Maintenance, and Long-Term Adaptation

A strategy for how to manage thermal bridging must be embedded in the building’s governance. This is not a “maintenance” item in the traditional sense, but a “conformance” item.

Layered Checklist for Envelope Integrity

• Design Review: Does every penetration have a specified thermal break?

• Pre-Slab Pour Inspection: Verify the placement of STB modules in balconies.

• Blower Door Testing: While primarily for air leakage, this can help identify “thermal bypasses” where air is moving through the insulation at a bridge point.

• Acoustic Audit: Thermal bridges often double as “acoustic bridges.” If you can hear the street noise clearly at a specific wall junction, you likely have a thermal management issue as well.

Measurement, Tracking, and Evaluation How to Manage Thermal Bridging

• Leading Indicators: The Psi ($\psi$) value (linear thermal transmittance) and Chi ($\chi$) value (point thermal transmittance) of specific details.

• Lagging Indicators: Utility bills that exceed the modeled energy use by more than 15%; humidity sensors in wall cavities showing sustained levels above 60%.

• Documentation: Maintain a “Thermal Detail Library” for the building, showing exactly how each junction was addressed for future renovations.

Common Misconceptions

1. “Wood doesn’t bridge.” While wood is better than steel, a 2×6 stud still has an R-value of about 1.2 per inch, whereas insulation is R-4 to R-6. In a standard wall, the studs account for 25% of the surface area, significantly lowering the “whole-wall” R-value.

2. “Double-stud walls solve everything.” They help, but the “plates” at the top and bottom still connect the two walls, creating a bridge unless specifically decoupled.

3. “A thermal break is just a gap.” A gap is an air-leakage path. A thermal break must be a solid, insulating material that maintains the air barrier.

4. “Spray foam is the ultimate thermal break.” Foam is great for air sealing, but if you spray it over a steel beam, the beam still conducts heat through the foam.

5. “Internal insulation is just as good.” Insulating from the inside (retrofits) is dangerous because it makes the structural members colder, increasing the risk of freeze-thaw damage in masonry.

Ethical and Practical Considerations

In the broader context of urban development, the failure to manage thermal bridging is an equity issue. Lower-income housing is often built with “Value Engineered” envelopes that neglect thermal breaks. This results in higher utility burdens for tenants and a higher likelihood of respiratory issues due to mold. From an editorial perspective, the “best” building is not the one with the most glass or the highest-tech gadgets, but the one that manages the invisible movement of energy with the most integrity.

Conclusion

Mastering how to manage thermal bridging is the final frontier in achieving a truly high-performance built environment. It represents a shift from “adding” components to “integrating” systems. As we look toward the future, the buildings that will remain valuable and resilient are those that treat the thermal envelope as a sacred boundary. Every bolt, every slab, and every corner is a testament to the designer’s commitment to thermodynamic reality.
