Common Building Envelope Mistakes: The Definitive Editorial Guide

The building envelope serves as the critical interface between a controlled interior environment and the chaotic variables of the external world. It is a sophisticated multi-layered assembly designed to manage the transfer of heat, air, moisture, and light. Common Building Envelope Mistakes. When functioning correctly, this skin ensures occupant comfort, minimizes energy consumption, and protects the structural skeleton from premature decay. However, the complexity of modern building materials and the pressure for rapid construction cycles have led to a proliferation of systemic failures that compromise the longevity of residential and commercial structures alike.

Analyzing these failures requires moving beyond the surface-level observation of drafts or leaks. One must understand the building as a thermodynamic system where the movement of energy and water is dictated by the laws of physics. Many errors are not the result of a single poor product, but rather a lack of continuity between different materials—a failure of the “handshake” between the roof, the walls, and the foundation. This discontinuity allows for the uninhibited migration of vapor and heat, leading to cascading issues that are often invisible until the damage is structural.

The modern push toward higher energy efficiency has, paradoxically, heightened the stakes. As we build “tighter” envelopes to meet stringent codes, the margin for error shrinks. In older, draftier buildings, moisture that entered a wall cavity could often dry out through natural air infiltration. In a high-performance, airtight assembly, trapped moisture becomes a permanent resident, fueling mold growth and rot. Therefore, a contemporary understanding of structural management must prioritize the precise coordination of air barriers, vapor retarders, and thermal layers to ensure that the assembly is not only efficient but also resilient.

Understanding “common building envelope mistakes”

To truly grasp common building envelope mistakes, one must recognize that the “envelope” is not a single entity but a series of interconnected systems. Misunderstandings often arise when designers or contractors focus on individual components—like a high-end window or a specific type of insulation—without considering how they interact. A window with a stellar U-value is practically worthless if the flashing around it is installed in a way that directs rainwater behind the siding. These errors are frequently errors of “interface,” occurring at the junctions where different trades meet.

Oversimplification is another significant risk. Many believe that “more insulation” is a universal fix for efficiency. In reality, adding insulation without a corresponding air-sealing strategy can worsen moisture problems. If warm, humid interior air is allowed to leak into a cold wall cavity filled with insulation, it will reach its dew point and condense into liquid water. This scenario illustrates why a holistic approach—treating air, water, and heat as a single management challenge—is the only way to avoid the systemic flaws that lead to building failure.

Furthermore, there is a dangerous tendency to view building codes as the ceiling of performance rather than the floor. Building to code-minimum standards often leaves a structure vulnerable to local environmental extremes. Common building envelope mistakes frequently stem from a failure to adapt a universal design to a specific micro-climate. A vapor barrier strategy that works in the arid climate of Phoenix will likely cause a structural disaster if replicated in the humid environment of Miami.

The Historical Evolution of Envelope Management

The history of the building envelope is a transition from “mass” to “membrane.” Early architectural traditions relied on thick, monolithic walls of stone, brick, or sod. These materials acted as thermal mass, slowing the transfer of heat and absorbing moisture during wet periods to release it later. These buildings were inherently resilient because they were simple and breathable. They did not rely on complex chemical barriers because the materials themselves performed multiple functions.

The industrial revolution and the advent of balloon framing shifted the paradigm toward multi-component assemblies. We began to separate functions: a structural frame, an exterior cladding for rain protection, and interior finishes for aesthetics. This allowed for faster, cheaper construction but introduced “voids” into the walls. By the mid-20th century, the introduction of synthetic insulation and plastic vapor barriers added another layer of complexity. We were no longer building with “breathing” mass; we were building layered sandwiches of materials with wildly different physical properties.

Today, we are in the era of high-performance building science, where the envelope must be a perfectly sealed pressure vessel. This shift has eliminated the natural “drying capacity” of buildings. In the past, if a window leaked slightly, the drafty walls would dry the wood. Now, with spray foam and house wraps, the moisture is trapped. This historical context is vital for understanding why modern errors are so much more destructive than those of the past: our buildings have lost their ability to forgive mistakes.

Conceptual Frameworks and Building Science Models

The Four Barrier Rule

Professional building scientists use the “Four Barrier Rule” to evaluate envelope integrity. For an envelope to be successful, it must have four continuous layers around the entire building:

1. Water Control Layer: Sheds liquid water (rain).

2. Air Control Layer: Prevents the movement of air (and the moisture it carries).

3. Vapor Control Layer: Manages the diffusion of water vapor through solid materials.

4. Thermal Control Layer: Resists the flow of heat (insulation).

The Perfect Wall Concept

Developed by Joseph Lstiburek, the “Perfect Wall” model suggests that the most resilient way to build is to place all control layers outside the structural frame. By wrapping the “bones” of the building in a continuous blanket of insulation and water protection, you keep the structure at a constant temperature and protect it from the elements. Most common building envelope mistakes occur when these layers are moved to the interior or fragmented between studs.

The Dew Point Gradient

This model tracks the temperature drop from the inside of a wall to the outside. It allows designers to predict exactly where moisture will turn to liquid. If the dew point occurs inside the plywood sheathing or the insulation, rot is inevitable. Understanding this gradient is essential for deciding where to place vapor retarders in a specific climate.

Primary Categories of Systemic Failure

Mistake Category	Primary Mechanism	Structural Consequence
Thermal Bridging	Heat bypassing insulation through conductive materials (steel/concrete).	High energy bills, ghosting on walls, localized condensation.
Discontinuous Air Barrier	Gaps at top plates, rim joists, and electrical penetrations.	Drafts, moisture transport into cavities, ice damming.
Reverse Flashing	Overlapping materials in a way that funnels water inward.	Hidden rot in sheathing, mold growth, structural compromise.
Poor Vapor Placement	Placing vapor barriers on the wrong side of the wall for the climate.	Trapped interstitial condensation that cannot dry out.

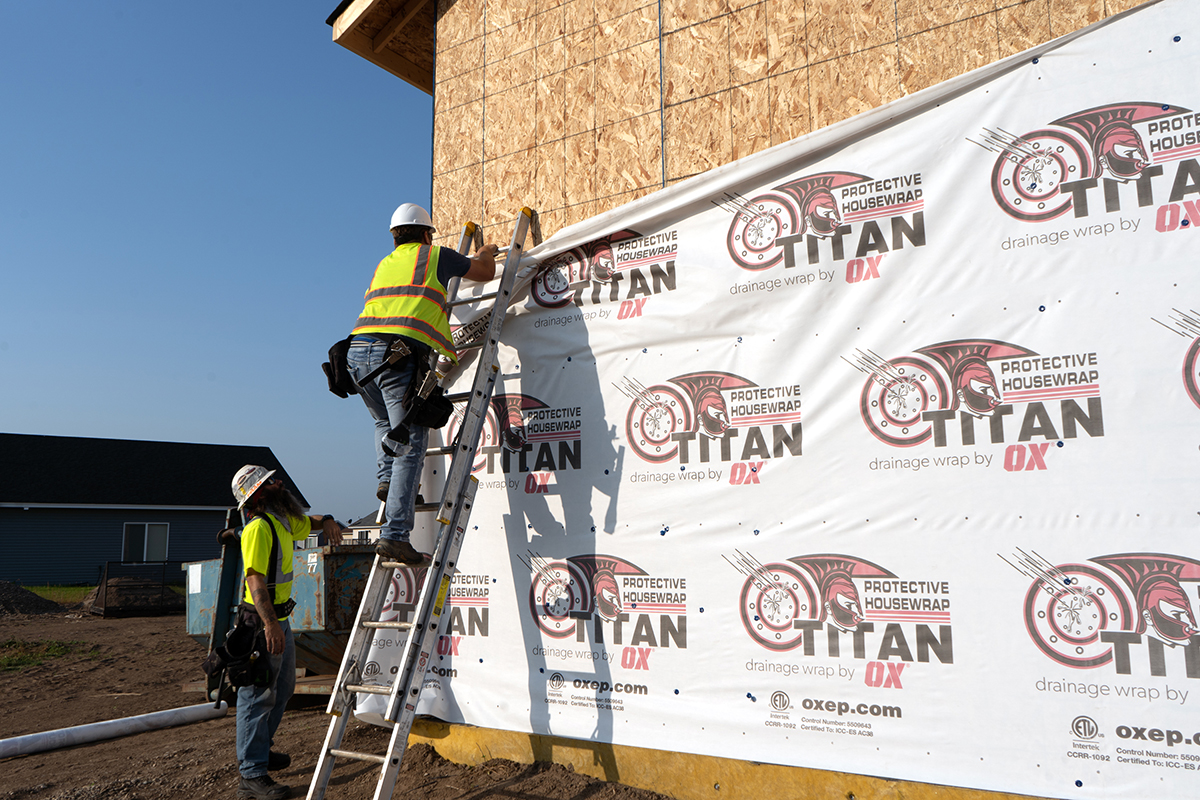

Inadequate Drainage Planes	Siding installed directly against house wrap without an air gap.	“Solar driving” of moisture through the wrap and into the studs.

The Nuance of Thermal Bridging

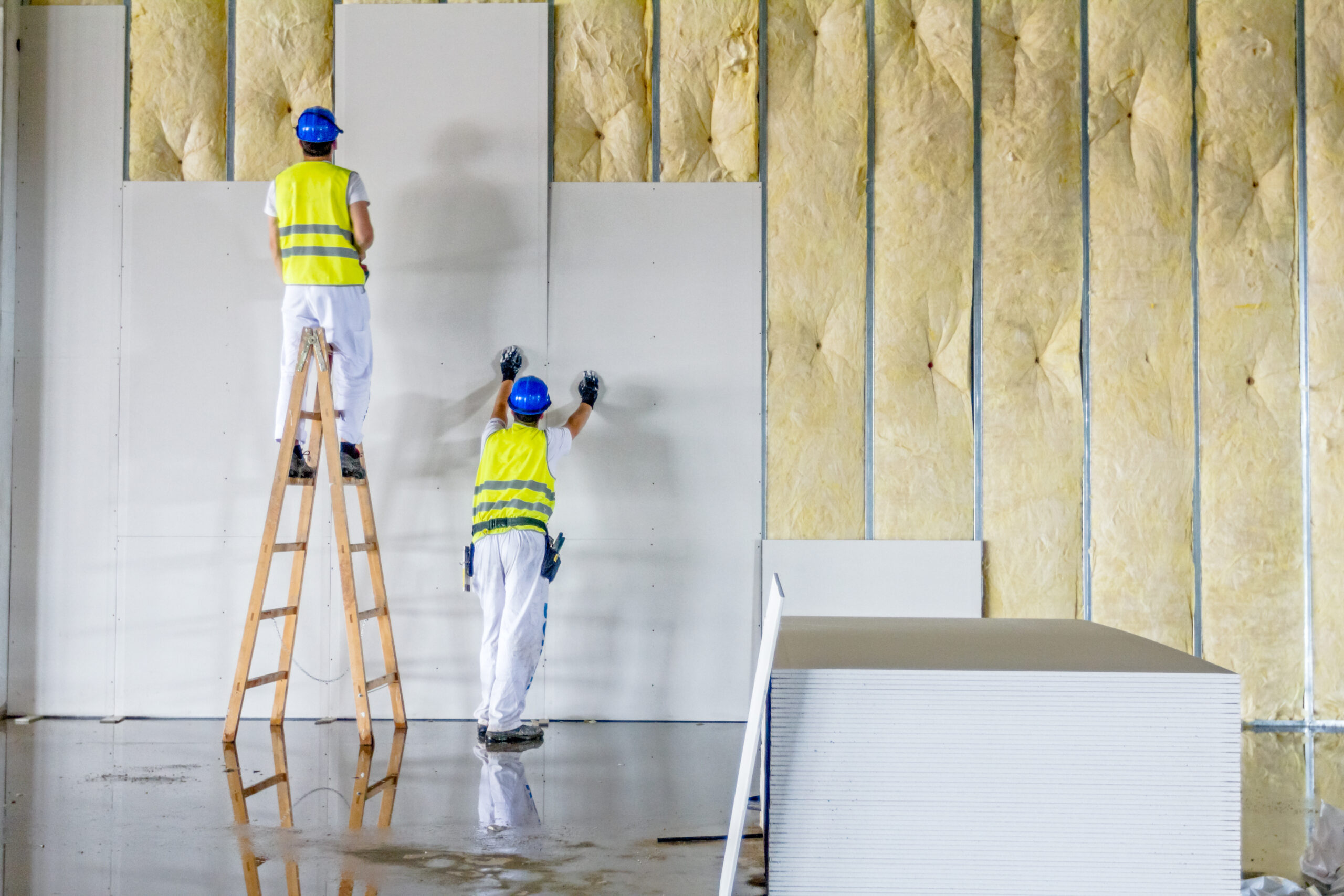

Thermal bridging is often underestimated because it is invisible to the naked eye. Steel studs, for example, are incredibly efficient at conducting heat. A wall insulated with R-19 batts between steel studs may have an “effective” R-value of only R-7 because the heat simply zips through the metal. This not only wastes energy but creates cold spots on the interior drywall where dust collects (ghosting) and mold can bloom.

Detailed Real-World Scenarios Common Building Envelope Mistakes

Scenario 1: The Window Flashing Failure

In a new suburban development, several homes show signs of rot around window sills within three years.

• The Error: The installers used high-quality flashing tape but applied the bottom piece over the side pieces (reverse shingling).

• The Result: Water running down the window jamb was funneled behind the tape and directly onto the wooden rough opening.

• The Lesson: Material quality cannot compensate for a failure in the basic logic of water shedding.

Scenario 2: The Unintended Attic Condensation

A homeowner adds thick blow-in insulation to their attic to save on heating costs. By mid-winter, the roof rafters are dripping with water.

• The Error: The contractor failed to seal the “attic bypasses”—holes for plumbing stacks and light fixtures.

• The Result: Warm, moist air from the shower and kitchen was pushed into the cold attic. The new, thicker insulation kept the attic colder than before, causing the moisture to flash-freeze on the underside of the roof deck and then melt.

• The Lesson: Thermal upgrades must always be preceded by air sealing.

Planning, Cost, and Resource Dynamics

The financial burden of common building envelope mistakes is weighted heavily toward the back end of a building’s life cycle. While doing it right the first time costs more in labor and specialized materials, the cost of a “failure” is often 10 to 50 times the original investment.

Intervention	Upfront Cost (sq.ft)	Complexity	Potential Savings/Avoidance
Standard House Wrap	$0.50 – $1.00	Low	Minimal protection against air leaks.
Liquid-Applied Barrier	$3.00 – $6.00	Moderate	Excellent air/water continuity.
Exterior Rigid Insulation	$5.00 – $12.00	High	Eliminates thermal bridging; high ROI.

Opportunity Cost

The opportunity cost of choosing a cheaper envelope is the “durability tax.” In the commercial sector, a building with a compromised envelope will see its market value drop and its insurance premiums rise. For a homeowner, it is the difference between a house that lasts 100 years and one that requires a full “gut” renovation of the exterior within 15 years.

Technical Strategies and Support Systems

To mitigate common building envelope mistakes, professionals rely on several key tools and strategies:

1. Blower Door Testing: Pressurizing the building to find every hidden air leak.

2. Infrared Thermography: Using thermal cameras to spot “cold spots” and missing insulation.

3. Rain-Screen Systems: Creating a 1/4-inch to 3/4-inch air gap behind siding to allow for drainage and drying.

4. Taped Sheathing: Using products like ZIP System to combine the structural and air/water barriers into one plane.

5. Aerosolized Air Sealing: A pressurized fog that automatically finds and plugs every tiny crack in the envelope.

6. Hygrothermal Modeling (WUFI): Software that simulates how moisture will move through a specific wall assembly over decades.

Risk Landscape and Compounding Failure Modes

Risk in building science is rarely linear. It is often a “compounding” failure where one small mistake enables a much larger one.

• The Airtightness/Ventilation Trap: If you succeed in making an envelope perfectly airtight but fail to install a balanced ventilation system (like an ERV), the interior humidity will skyrocket, leading to window condensation and poor air quality.

• The Solar Drive Effect: When dark siding is heated by the sun, it can actually “push” moisture vapor inward through the wall. If there is a plastic vapor barrier on the inside, that moisture is trapped against the wood sheathing.

Governance, Maintenance, and Adaptation

An envelope is not a static asset; it requires a governance protocol to ensure long-term performance.

• Annual Visual Audits: Inspecting caulking at window-to-wall junctions and checking for cracks in stucco or siding.

• Roof Edge Inspection: Ensuring that gutters and “kick-out” flashings are still directing water away from the wall assembly.

• Post-Storm Evaluation: Checking the attic for “wind-driven” rain that may have bypassed soffit vents.

Adaptation Trigger Checklist

• [ ] Has the occupancy increased significantly (more moisture generation)?

• [ ] Have any new penetrations (mini-splits, vents) been added to the walls?

• [ ] Is there evidence of “puddling” or soil saturation near the foundation?

Measurement, Tracking, and Evaluation

• Leading Indicators: Blower door scores (ACH50), thermal bridge calculations during design.

• Lagging Indicators: Utility bill spikes, visual evidence of efflorescence on masonry, mold odors.

• Documentation: Maintaining a “Digital Twin” or a set of as-built photos of all flashing and insulation before the drywall was installed is the most valuable asset for future troubleshooting.

Common Misconceptions and Oversimplifications

1. Myth: “A building needs to breathe.”

   • Reality: People need to breathe; buildings need to be airtight but able to dry. Controlled ventilation is better than random leaks.

2. Myth: “Vapor barriers should always be plastic.”

   • Reality: Smart vapor retarders that change permeability based on humidity are often much safer than “dead” plastic.

3. Myth: “Double-stud walls are always better.”

   • Reality: They are harder to build correctly and are at high risk for moisture accumulation if the outer sheathing stays too cold.

4. Myth: “Spray foam is a magic air sealer.”

   • Reality: Foam can pull away from studs as it cures or as the building settles, creating hidden “micro-leaks.”

Conclusion

The management of common building envelope mistakes is ultimately a commitment to intellectual honesty in the construction process. It requires acknowledging that a building is a dynamic participant in its environment, constantly subject to the forces of thermodynamics and weather. By prioritizing continuity—of the air barrier, the thermal layer, and the drainage plane—we move away from a culture of “repair and replace” toward one of permanent structural integrity. A resilient envelope is the most important investment in a building’s life, serving as the foundation for both energy efficiency and the health of its occupants. Mastery of these principles is what separates a mere shelter from a lasting architectural asset.
